08045800677
Turf Drainage Cell
120.00 - 150.00 INR/Piece
Product Details:
- Form Grid/Panel
- Application Garden drainage, sports field drainage, roof garden drainage, retaining wall drainage
- Machines Type Non-machinery, used in landscaping works
- Color Black
- Thickness 20mm, 30mm, 50mm
- Installation Type Interlocking, modular installation
- Purity >95% HDPE
- Click to View more
X
Turf Drainage Cell Price And Quantity
- 120.00 - 150.00 INR/Piece
- 200 Piece
- Excellent to fertilizers and soil chemicals
- Stabilized for outdoor exposure
- Loose or palletized stack
- 100% recyclable material
- >150 t/m2
- Interlocking edge connectors
- -20°C to +80°C
- Up to 10 L/m2 (depending on thickness)
- >95%
- Self-extinguishing (upon removal of fire source)
- >50 years in covered environments
Turf Drainage Cell Product Specifications
- Used for under turf, planters, sports fields, and retaining walls
- Modular Panel / Square Grid
- Up to 100 t/m2 (varies by thickness)
- High-Density Polyethylene (HDPE)
- Virgin and recycled HDPE available
- High compressive strength, rapid drainage, lightweight, low maintenance
- Lightweight, robust, high water flow capacity, environmentally friendly
- Cell diameter approximately 30mm
- Non-machinery, used in landscaping works
- Turf Drainage Cell
- Black
- Grid/Panel
- Garden drainage, sports field drainage, roof garden drainage, retaining wall drainage
- >95% HDPE
- 500mm x 500mm x 20mm / 30mm / 50mm
- 20mm, 30mm, 50mm
- 1.5 kg per piece (varies with thickness)
- Smooth
- Interlocking, modular installation
- Excellent to fertilizers and soil chemicals
- Stabilized for outdoor exposure
- Loose or palletized stack
- 100% recyclable material
- >150 t/m2
- Interlocking edge connectors
- -20°C to +80°C
- Up to 10 L/m2 (depending on thickness)
- >95%
- Self-extinguishing (upon removal of fire source)
- >50 years in covered environments
Turf Drainage Cell Trade Information
- 500 Piece Per Day
- 10 Days
Product Description

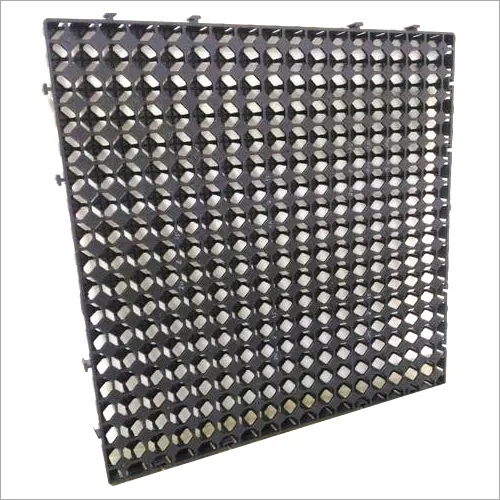

Turf Drainage Cell
We are offering here the Turf Drainage Cell that is made of high polyethylene raw material in a flexible, honeycomb design of sub¬soil HDPE modular drainage layer. They are primarily designed to allow water to percolate through the backing of the turf and drain through the base layer into the water table. It is a lightweight, high strength modular drainage cell designed primarily for sub-surface drainage, and to form tanks for underground storm water infiltration or storage. It is the lightweight three dimensional geocomposite with flat back. The offered Turf Drainage Cell is made for use in the various commercial applications.
Specification
| Material | Plastic |
| Shape | Square, Rectangle |
| Length | As per Requirement |
| Country of Origin | Made in India |
| Thickness | 20 mm |
| Output Current (Ampere) | 100 - 200 |
| Size | 450 x 450 cm |
Efficient Drainage Solution for Landscaping Projects
Turf Drainage Cells are engineered to optimize water flow beneath turf surfaces, sports fields, gardens, and green roofs. Their high void ratio and water storage capacity minimize waterlogging, support healthy plant roots, and maintain soil structure. The interlocking modular design expedites installation, while the lightweight panels make handling and placement effortless.
Durable and Sustainable Material
Manufactured from high-density polyethylene (HDPE), these panels offer exceptional chemical resistance and withstand temperatures from -20C to +80C. Their UV-stabilized surface ensures longevity outdoors, and the material is fully recyclable, supporting environmentally-friendly building practices. The self-extinguishing fire rating further ensures property safety.
FAQs of Turf Drainage Cell:
Q: How are Turf Drainage Cells installed in landscaping projects?
A: Turf Drainage Cells are installed using their interlocking edge connectors, allowing for modular assembly over prepared surfaces. They can be laid beneath turf, planters, or along retaining walls, then covered with soil or sand and turf or other vegetation.Q: What benefits do Turf Drainage Cells provide in garden or sports field drainage?
A: These drainage cells rapidly channel water away from the surface, preventing waterlogging and promoting healthy root zones. Their high compressive strength supports heavy loads, making them suitable for sports fields and high-traffic areas.Q: When should Turf Drainage Cells be used in landscaping or construction?
A: They are ideally used during the initial stages of landscaping or construction, particularly for gardens, sports fields, roof gardens, and retaining walls that require efficient drainage solutions and long-term durability.Q: Where can Turf Drainage Cells be applied?
A: Applications include garden beds, sports fields, roof gardens, planter bases, retaining wall drainage systems, and any area requiring robust sub-surface water management.Q: What is the process for installing Turf Drainage Cells under turf or planters?
A: Installers lay the modular panels over a leveled base, ensuring the interlocking connections are secure. A layer of geo-fabric may be placed above the cells, followed by the growing medium and turf or plants.Q: What makes Turf Drainage Cells environmentally friendly?
A: They are manufactured from 100% recyclable HDPE and are designed for minimal maintenance, supporting sustainable landscaping practices. Both virgin and recycled material grades are available.Q: What is the expected lifespan of Turf Drainage Cells and how do they resist harsh conditions?
A: In covered environments, Turf Drainage Cells have a lifespan exceeding 50 years. Their HDPE composition offers excellent resistance to fertilizers, chemicals, UV rays, and extreme temperatures, ensuring dependable performance in diverse climates.Tell us about your requirement
